Mica Tape Making Machine

Name: Mica Tape Making Machine
Brand: LA MACHINOTECH
Price: 1800000 INR
Availability: InStock

1800000 INR/Unit

Get a Price/Quote

Product Details:

Features High efficiency, low maintenance, energy saving designing
Production Capacity 100 m/min
Connectivity Options Standard Interface, Remote Diagnostics
Cooling System Air and Water Cooling Supported
Lubricating System Automatic Lubrication
Accuracy 0.2 mm
Noise Level 72 dB(A)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Mica Tape Making Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 1800000 INR/Unit

Fault Detection Integrated Alarm System
Emergency Stop Yes, Multiple Locations
Winding Type Automatic Traverse Winding
After Sales Support 24/7 Technical Assistance
Replacement Parts Available
Operator Interface Touch Screen HMI
WorkingSpeed 30-100 m/min (Adjustable)
Compressed Air Requirement 0.5-0.8 MPa
Max Roll Diameter (Unwind/Rewind) 500 mm
Ambient Humidity 80% RH
Transportability Forklift Slots and Lifting Hooks
Installation Service Available on Request
Max Tape Width 600 mm
Rewinding Station 1 with Tension Control
Unwinding Stations 2
Roll Core Size 76 mm (3 inch)
User Manual Comprehensive with Diagrams
Material Thickness Range 0.05 mm 0.4 mm

Mica Tape Making Machine Product Specifications

Surface Treatment Paint Coated
Connectivity Options Standard Interface, Remote Diagnostics
Production Capacity 100 m/min
Features High efficiency, low maintenance, energy saving designing
Power Source Electric
Cooling System Air and Water Cooling Supported
Weight (kg) 1800 kg
Lubricating System Automatic Lubrication
Technology Semi-Automatic and PLC Based
Accuracy 0.2 mm
Noise Level 72 dB(A)
Frequency 50 Hz
Color Industrial Blue & Gray
Dimension (L*W*H) 3200 mm x 1500 mm x 1800 mm
Drive AC Motor Drive
Product Type Mica Tape Making Machine
Power Rating 7.5 kW
Pressure Adjustable, up to 5 Tons
Voltage 380 V
Model No MTM-3200
Frame Type Heavy Duty Mild Steel Frame
Motor Power 5.5 kW
Usage & Applications Electrical insulation tape production, cable industry
Power 7.5 kW
Control System PLC Based Control Panel
Operating Type Automatic
Machine Type Tape Winding & Slitting Machine
Plastic Processed Not Applicable (Mica Tape)
Operating Temperature 5C 40C

Fault Detection Integrated Alarm System
Emergency Stop Yes, Multiple Locations
Winding Type Automatic Traverse Winding
After Sales Support 24/7 Technical Assistance
Replacement Parts Available
Operator Interface Touch Screen HMI
WorkingSpeed 30-100 m/min (Adjustable)
Compressed Air Requirement 0.5-0.8 MPa
Max Roll Diameter (Unwind/Rewind) 500 mm
Ambient Humidity 80% RH
Transportability Forklift Slots and Lifting Hooks
Installation Service Available on Request
Max Tape Width 600 mm
Rewinding Station 1 with Tension Control
Unwinding Stations 2
Roll Core Size 76 mm (3 inch)
User Manual Comprehensive with Diagrams
Material Thickness Range 0.05 mm 0.4 mm

Product Description

Reserve your spot among industry leaders with the ace Mica Tape Making Machine, engineered for peerless performance and ineffable reliability. Offering automatic traverse winding and dual unwinding stations, it supports a max tape width of 600 mm and precise tension control. Experience seamless operations via the advanced touch screen HMI, integrated alarm system, and emergency stop. Supporting multiple locations and transportability features, this semi-automatic, PLC-based marvel delivers 100 m/min production capacity. Order today-secure the best price, comprehensive user support, and exceptional after-sales assistance.

Versatile Uses & Competitive Edge: The Ace of Mica Tape Machinery

The Mica Tape Making Machine excels in electrical insulation tape production and is indispensable in the cable industry. Its automatic operations, high efficiency, and 0.2 mm accuracy make it a competitive must-have. Peerless in performance, it features advanced safety, tension control, and a heavy-duty frame, ensuring reliability. Its adaptability across various industrial settings, quick changeover, and remote diagnostics yield maximum return on investment for manufacturers, exporters, traders, and suppliers alike.

Packaging, Exchange, and Sample Details: Effortless Drop-Offs

Each Mica Tape Making Machine is securely packaged and handed over using robust materials to withstand drop-off stress at your specified location. Exchange of critical information, such as installation or sample availability, is facilitated via clear communication before shipment. We offer sample demonstrations on request, and FOB port handling ensures efficient delivery. Rest easy knowing your equipment reaches its destination safely, primed for immediate operation.

FAQ's of Mica Tape Making Machine:

Q: How does the integrated alarm system enhance machine usage and safety?

A: The integrated alarm system automatically detects operational faults and immediately notifies operators, improving safety and minimizing downtime by allowing timely interventions.

Q: What industries and applications benefit most from this mica tape making machine?

A: Primarily, the machine is used in the electrical insulation tape production sector, with significant application in cable manufacturing and related industries requiring precise and reliable mica tape processing.

Q: What is the process for ordering and installation support?

A: Customers can reserve or order the machine directly. Installation services are available upon request, and full technical assistance is provided throughout the process, including a comprehensive manual and 24/7 after-sales support.

Q: Where can the machine be operated and is it transportable?

A: With forklift slots and lifting hooks, the machine can be installed at multiple locations. Its compact frame and robust design allow for easy relocation within industrial settings.

Q: What are the benefits of the PLC-based control panel and touch screen HMI?

A: The PLC-based control panel, paired with an intuitive touch screen HMI, ensures precise, user-friendly operation, streamlined control, and simplified troubleshooting for operators.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Mica Tube Making Machines' category

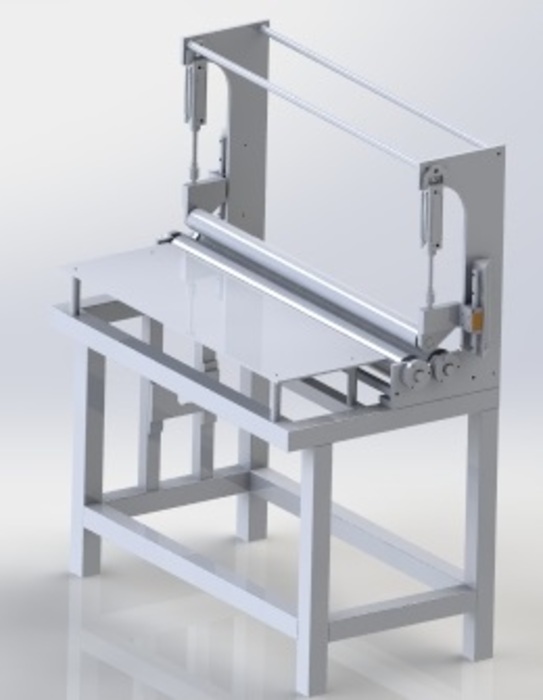

Mica Tube Draw Bench Price : 160000 INR/Unit Minimum Order Quantity : 1 Technology : Other, Mechanical / Hydraulic Draw Bench Power Source : Other, Electric Product Type : Other, Mica Tube Draw Bench Operating Type : Other, Automatic / SemiAutomatic Production Capacity : 4080 tubes/hr Connectivity Options : Wired (No IoT/connectivity required) Features : Sturdy construction, precise operation, easy maintenance Surface Treatment : Other, Polished / Painted Frame Noise Level : <80 dB Accuracy : 0.1 mm Lubricating System : Automatic / Manual Lubrication Cooling System : Water Cooling (optional) Weight (kg) : Approx. 1200 3000 kg (as per model) Model No : MTDB Series Frame Type : Heavy Duty Steel Frame Pressure : Hydraulic (variable as per tubing requirement) Power Rating : Standard 3phase, as per motor specification Voltage : 380V / 415V AC, 3 Phase Drive : Hydraulic / Electric Motor Drive Dimension (L*W*H) : Customized (typically 30006000mm length) Frequency : 50/60 Hz Color : Blue / Industrial Grey Operating Temperature : 5C to 40C Control System : Other, PLC / Manual Panel Machine Type : Draw Bench Power : 7.5 15 kW (approx. depending on model) Motor Power : 7.5 15 HP (depends on model) Usage & Applications : Used for drawing and forming mica tubes for industrial and electrical insulation uses
