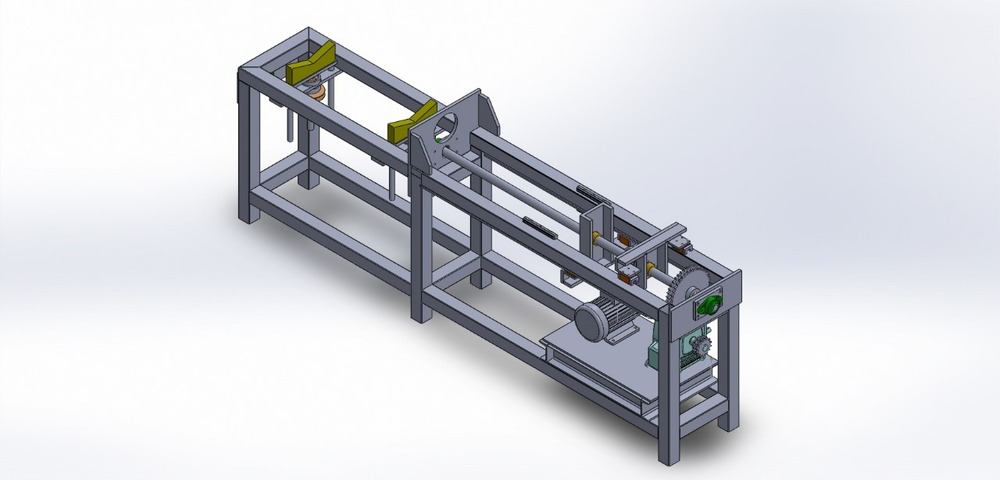

Mica Tube Draw Bench Machine

Name: Mica Tube Draw Bench Machine
Brand: LA MACHINOTECH
Price: 160000 INR
Availability: InStock

160000 INR/Unit

Get a Price/Quote

Product Details:

Noise Level Below 60 dB
Connectivity Options Standard power connection, optional remote monitoring
Cooling System Water Cooled
Control System PLC Controlled
Lubricating System Centralized Automatic
Accuracy 0.1 mm on diameter
Features Sturdy structure, low maintenance, adjustable draw speed, high reliability
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Mica Tube Draw Bench Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 160000 INR/Unit

Installation Service Available on request
Min Tube Diameter 10 mm
Ambient Humidity Range 85% RH
Optional Accessories Digital length counter, automatic tube ejector
Max Tube Length 2000 mm
Max Tube Diameter Up to 100 mm
Main Shaft Diameter 65 mm
Roller Material Alloy steel, heat treated
Applicable Standards ISO 9001:2015 Certified
Safety Features Emergency stop, interlock covers, safety guards
Oil Reservoir Capacity 35 liters
Training Provided On-site operational training

Mica Tube Draw Bench Machine Product Specifications

Operating Temperature 5C to 45C
Production Capacity 150-300 tubes/hour
Power Rating Main Motor: 7.5 HP
Pressure Hydraulic up to 200 bar
Product Type Mica Tube Draw Bench Machine
Frame Type Heavy Duty Welded Steel Frame
Surface Treatment Powder Coated
Power Source Electric
Operating Type Semi-Automatic
Connectivity Options Standard power connection, optional remote monitoring
Lubricating System Centralized Automatic
Control System PLC Controlled
Cooling System Water Cooled
Dimension (L*W*H) 3800 mm x 900 mm x 1200 mm
Technology Cold Draw
Color Green / Blue
Noise Level Below 60 dB
Voltage 380V / 415V
Motor Power 7.5 HP
Frequency 50/60 Hz
Power 5-15 kW (varies by model)
Machine Type Bench Type
Features Sturdy structure, low maintenance, adjustable draw speed, high reliability
Accuracy 0.1 mm on diameter
Usage & Applications Used for manufacturing and shaping mica tubes for electrical insulation applications
Drive Chain/gear driven
Weight (kg) 1300 kg
Model No MTDB-101

Installation Service Available on request
Min Tube Diameter 10 mm
Ambient Humidity Range 85% RH
Optional Accessories Digital length counter, automatic tube ejector
Max Tube Length 2000 mm
Max Tube Diameter Up to 100 mm
Main Shaft Diameter 65 mm
Roller Material Alloy steel, heat treated
Applicable Standards ISO 9001:2015 Certified
Safety Features Emergency stop, interlock covers, safety guards
Oil Reservoir Capacity 35 liters
Training Provided On-site operational training

Mica Tube Draw Bench Machine Trade Information

Main Domestic Market All India

Product Description

Seize this hot deal on the gilt-edged Mica Tube Draw Bench Machine-Model MTDB-101-crafted for both peak performance and astounding reliability! Access state-of-the-art technology at an unbeatable price cut, with resplendent features like a heavy-duty welded frame, PLC-controlled precision (0.1 mm), and an oil reservoir capacity of 35 liters. Designed for versatile use, it accommodates tube diameters from 10 mm to 100 mm and lengths up to 2000 mm. Safety is prioritized with interlock covers and emergency stop. ISO 9001:2015 certified, with optional digital counters and remote monitoring, this semi-automatic machine blends innovation with dependability-ideal for electrical insulation tube manufacturing. Installation and training services, along with secure, reliable supply and logistics, ensure a seamless experience from order to operation.

Versatile Usage and Wide-Ranging Applications

The Mica Tube Draw Bench Machine is engineered for semi-automatic production of mica tubes, primarily used in electrical insulation. Its adaptable operation accommodates a variety of tube dimensions and guarantees 0.1 mm accuracy, making it a trusted solution for industries requiring precise, high-volume output. This machine is ideal for manufacturers, suppliers, and traders in the electrical, automotive, and engineering sectors who demand robust performance and consistent results.

Reliable Supply, Certified Quality, and Secure Shipping

With a strong supply ability to meet bulk and custom orders, each unit undergoes thorough quality checks for ISO 9001:2015 certification. Sample units can be provided on request, assuring you of product excellence. Modern logistics ensure machines are securely packaged and dispatched, guaranteeing prompt and damage-free delivery to your destination. Our streamlined shipping solutions support reliable exports and timely fulfillment across India and globally.

FAQ's of Mica Tube Draw Bench Machine:

Q: How does the Mica Tube Draw Bench Machine enhance productivity in tube manufacturing?

A: The machine offers rapid processing speeds (150-300 tubes/hour), adjustable draw speed, and high diameter accuracy of 0.1 mm, streamlining your workflow and boosting output efficiency.

Q: What safety features are included in this machine?

A: For operator protection, the machine features emergency stop buttons, interlock covers, and safety guards, ensuring safe usage throughout production.

Q: Where can this bench machine be installed, and is training available?

A: Installation can be arranged at your facility, and comprehensive on-site operational training is provided to ensure your staff can utilize the machine safely and efficiently.

Q: What certifications does the machine meet?

A: The Mica Tube Draw Bench Machine is ISO 9001:2015 certified, assuring consistent quality and conformity to international manufacturing standards.

Q: What are the options for customizing or upgrading the machine?

A: Optional accessories such as a digital length counter, automatic tube ejector, and remote monitoring can be added to tailor the machine's capabilities to your specific requirements.

Q: How does secure shipping and logistics benefit customers?

A: Machines are dispatched using robust logistics solutions, ensuring secure packaging, safe transit, and on-time delivery to your requested location.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Mica Tube Making Machines' category

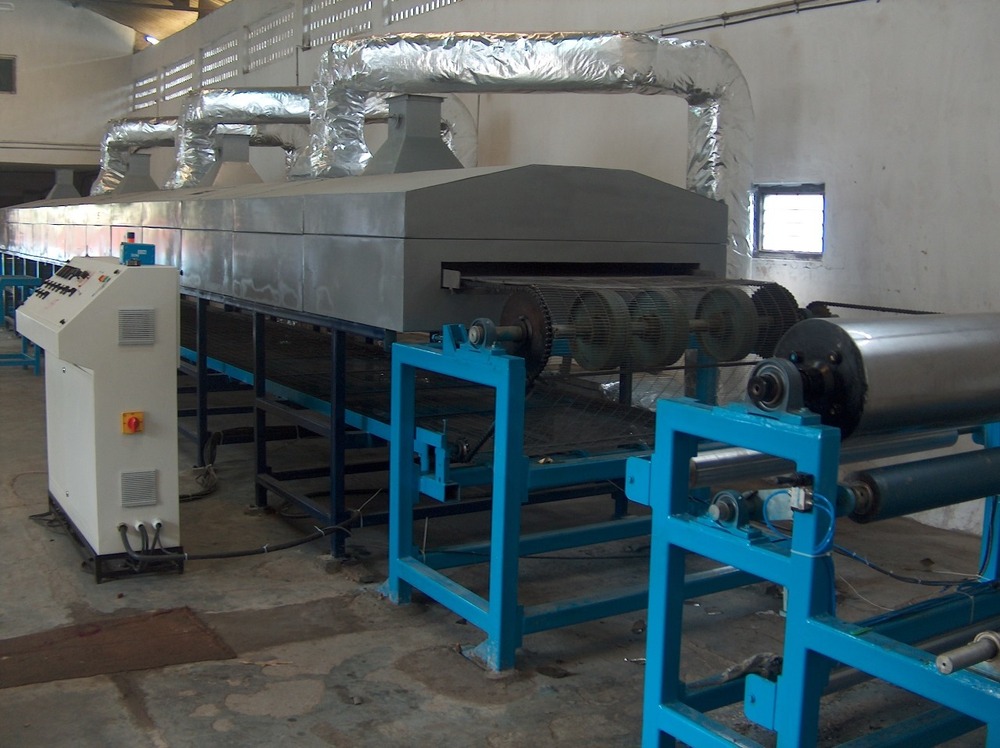

Mica Tape Making Machine Price : 1800000 INR/Unit Minimum Order Quantity : 1 Technology : Other, SemiAutomatic and PLC Based Product Type : Other, Mica Tape Making Machine Operating Type : Automatic Power Source : Other, Electric Connectivity Options : Standard Interface, Remote Diagnostics Dimension (L*W*H) : 3200 mm x 1500 mm x 1800 mm Color : Industrial Blue & Gray Lubricating System : Automatic Lubrication Control System : Other, PLC Based Control Panel Cooling System : Air and Water Cooling Supported Noise Level : 72 dB(A) Voltage : 380 V Motor Power : 5.5 kW Frequency : 50 Hz Features : High efficiency, low maintenance, energy saving designing Accuracy : 0.2 mm Machine Type : Tape Winding & Slitting Machine Power : 7.5 kW Usage & Applications : Electrical insulation tape production, cable industry Model No : MTM3200 Weight (kg) : 1800 kg Drive : AC Motor Drive Plastic Processed : Not Applicable (Mica Tape) Operating Temperature : 5C 40C Production Capacity : 100 m/min Power Rating : 7.5 kW Pressure : Adjustable, up to 5 Tons Frame Type : Heavy Duty Mild Steel Frame Surface Treatment : Other, Paint Coated

Send Inquiry

Mica Tube Draw Bench Price : 160000 INR/Unit Minimum Order Quantity : 1 Technology : Other, Mechanical / Hydraulic Draw Bench Product Type : Other, Mica Tube Draw Bench Operating Type : Other, Automatic / SemiAutomatic Power Source : Other, Electric Connectivity Options : Wired (No IoT/connectivity required) Dimension (L*W*H) : Customized (typically 30006000mm length) Color : Blue / Industrial Grey Lubricating System : Automatic / Manual Lubrication Control System : Other, PLC / Manual Panel Cooling System : Water Cooling (optional) Noise Level : <80 dB Voltage : 380V / 415V AC, 3 Phase Motor Power : 7.5 15 HP (depends on model) Frequency : 50/60 Hz Features : Sturdy construction, precise operation, easy maintenance Accuracy : 0.1 mm Machine Type : Draw Bench Power : 7.5 15 kW (approx. depending on model) Usage & Applications : Used for drawing and forming mica tubes for industrial and electrical insulation uses Model No : MTDB Series Weight (kg) : Approx. 1200 3000 kg (as per model) Drive : Hydraulic / Electric Motor Drive Plastic Processed : Not applicable (for mica tubes) Operating Temperature : 5C to 40C Production Capacity : 4080 tubes/hr Power Rating : Standard 3phase, as per motor specification Pressure : Hydraulic (variable as per tubing requirement) Frame Type : Heavy Duty Steel Frame Surface Treatment : Other, Polished / Painted Frame

Send Inquiry

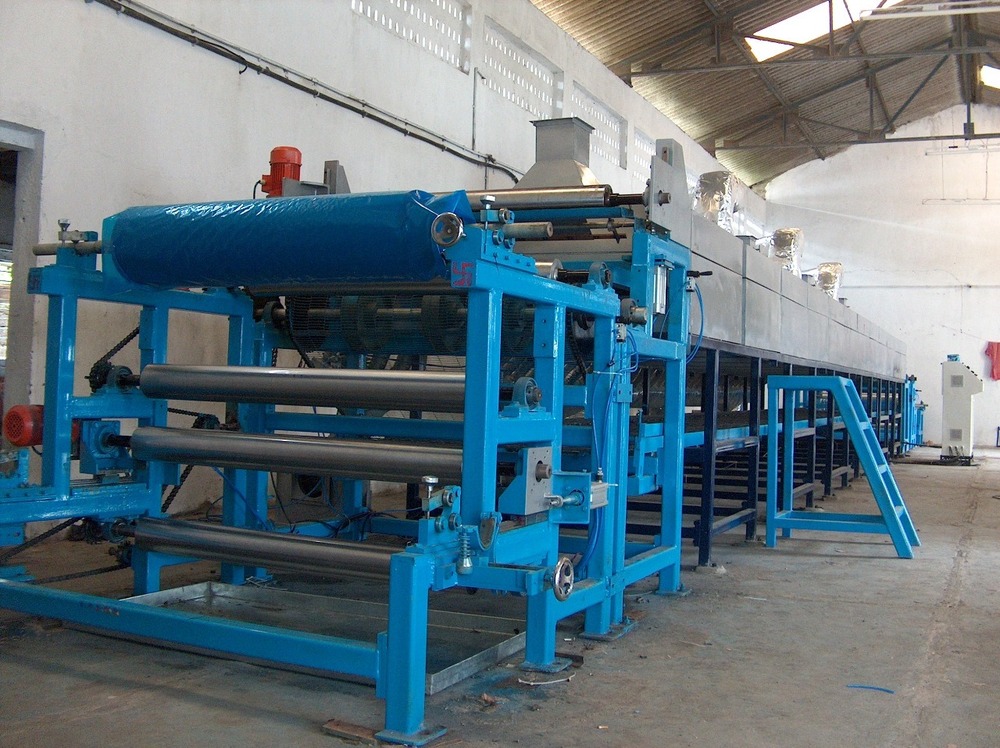

Glass Mica Tape Making Machine Price : 1800000 INR/Unit Minimum Order Quantity : 1 Technology : Laser Product Type : Other Operating Type : Semi Automatic Power Source : Electricity
